SKU: TMG-TPL45

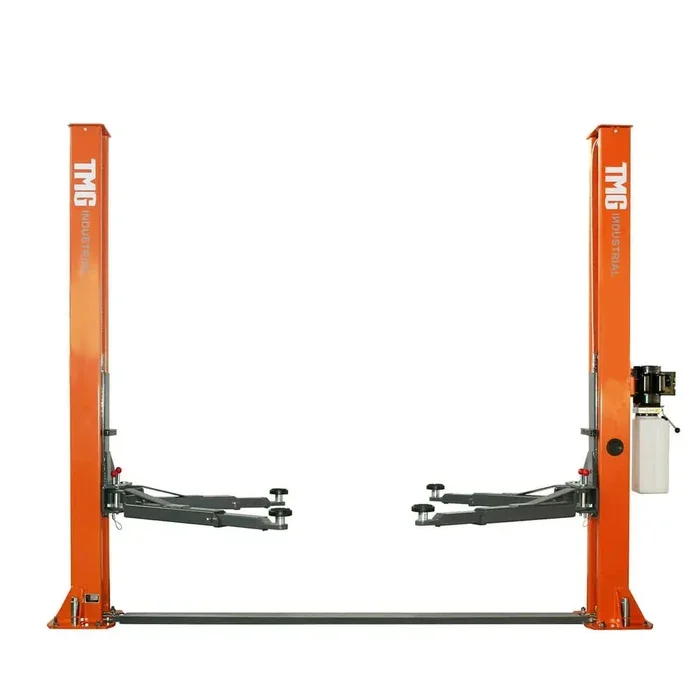

Two-post auto lift 10,000 pound capacity from TMG Industrial
SKU: TMG-TPL45
Specs:
Lift capacity: 10,000 lb
Overall height: 110”
Overall width: 134”
Outside column width: 124”
Inside column width: 110”
Crossing floor plate height: 1-¼”
Column size: 10-1/2” x 7”
Column base: 20” x 15”
Column steel: 6 GA
Carriage steel: 4 GA
Cable diameter: ⅜”
Lift height (pad only): 72”

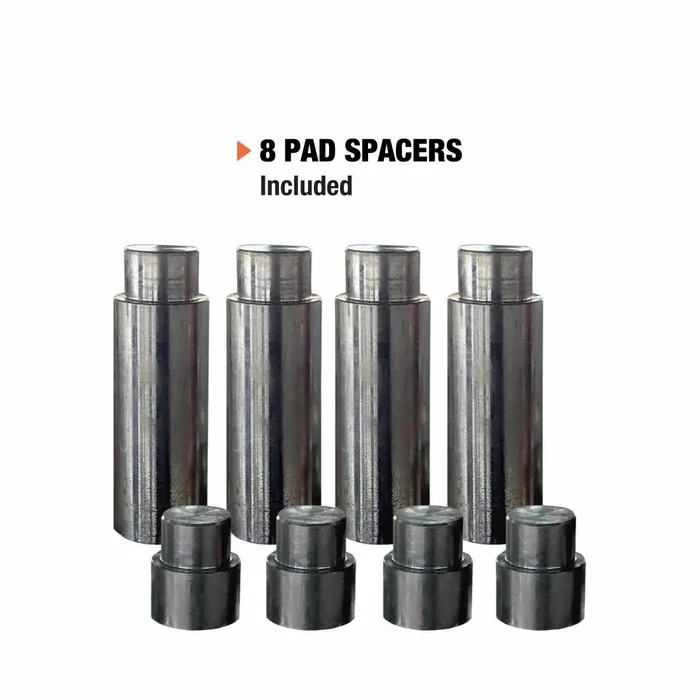

Lift height (with 5” adapter): 77”
Lift height clearance: 71"
Minimum height from the ground: 4-½”
Drive through clearance: 100”
Retractable front arm: 31-1/2” - 48”
Retractable rear arm: 31-1/2" to 48"
Travel speed:
Rise up at 90% load: 45 to 50 sec.
Lower down: 30 to 35 sec.
Max. load capacity per arm: 2,500 lb
Installation concrete slab required (minimum): 4-½” with 3000 PSI cured

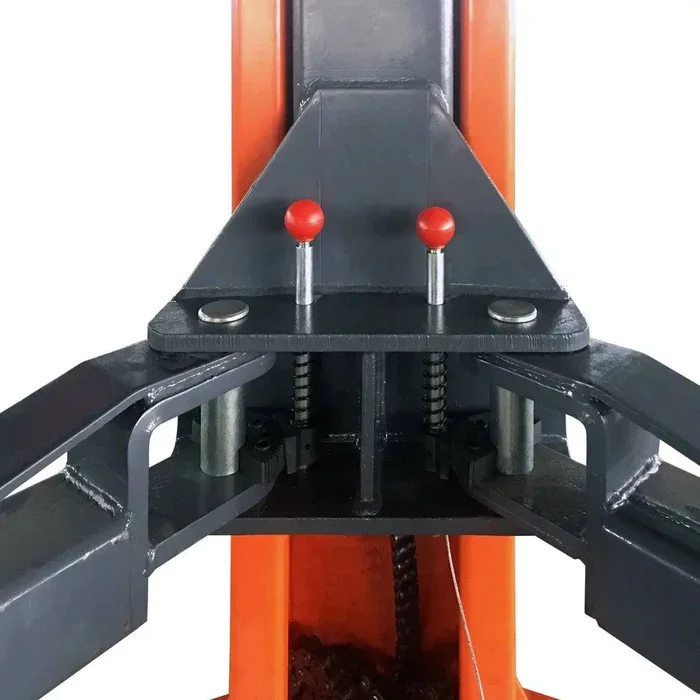

Automatic arm restraints
Dual point lock release
Mounting hardware included
Requires 25A breaker
Hydraulic Motor Pump Power Unit:
220 VAC, 3 HP, single phase
No-load speed: 3360 RPM
Working pressure: 2600 PSI
Tank capacity: 2.5 US gal
Pump oil required: AW32/AW46
CETL certified
Comes in two crates, crate 1 is 110” long, crate 2 is 32” long. Total weight of 1235 pounds.
